    Water Treatment Roots Air Blower 450 Rpm To 600 Rpm For Extensive Applications

    Ask Lasest Price
    Brand Name : B-Tohin
    Model Number : HC-201S
    Certification : ISO9001 / ISO14001/CE
    Price : USD 320 - 350 / set
    Payment Terms : T/T, L/C
    Supply Ability : 1200 sets / month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Water Treatment Roots Air Blower 450 Rpm To 600 Rpm For Extensive Applications


    Water Treatment Roots Air Blower 450 Rpm To 600 Rpm For Extensive Applications


    HC series rotary blowers adopt foreign advanced technology and processing technology. The main parts are


    processed by imported CNC lathes, bearing and oil seal all adopt high performance products, the key parts


    are imported products, the product performance has reached the domestic leading level.


    Water Treatment Roots Air Blower 450 Rpm To 600 Rpm For Extensive Applications


    (1) Low noise, energy consumption, smooth operation and easy installation.


    (2) Anti-load change, stable air volume, with air-chamber, stable air.


    (3) Excellent material, clever structure, excellent performance.


    2 Working principle


    Water Treatment Roots Air Blower 450 Rpm To 600 Rpm For Extensive Applications


    The blower relies on eccentric rotor eccentric operation in the cylinder, and the volume changes between


    the blades in the rotor slot can be inhaled, compressed and exhaled. In operation, the pressure difference


    of the blower is used to automatically send lubricant to the dripping nozzle to reduce the friction and noise


    in the cylinder, while reducing the backflow of the gas in the cylinder.


    3 Main components

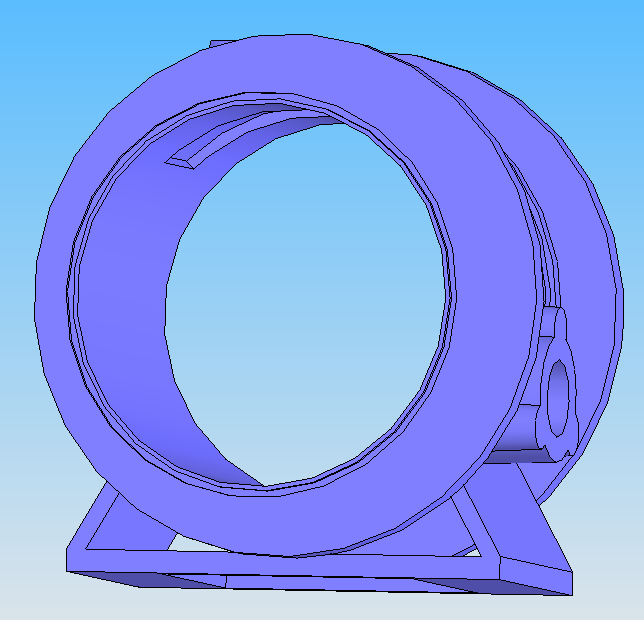

    Cylinder: The inner wall is honed, and the surface quality is higher. The end face opens the seal groove,


    and the sealing ring is used to ensure the air tightness.

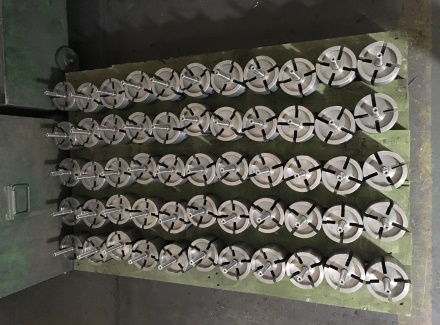

    Rotor: It is machined by CNC lathe with higher precision.


    4 Model parameter


    modelairflow(m³/min)pressure(kgf/cm²)
    HC-20S0.14-0.160.1-0.5
    HC-201S0.18-0.210.1-0.5
    HC-25S0.23-0.280.1-0.5
    HC-251S0.28-0.310.1-0.5
    HC-30S0.31-0.350.1-0.5
    HC-301S0.38-0.420.1-0.5
    HC-40S0.59-0.660.1-0.5
    HC-401S0.67-0.80.1-0.5
    HC-50S1.02-1.140.1-0.5
    HC-501S1.32-1.440.1-0.5
    HC-60S1.71-1.90.1-0.5
    HC-601S2.18-2.410.1-0.5
    HC-80S2.5-2.820.1-0.5
    HC-801S3.25-3.530.1-0.5
    HC-100S4.11-4.320.1-0.5
    HC-1001S5.11-5.410.1-0.5

    5 Noise curve


    Water Treatment Roots Air Blower 450 Rpm To 600 Rpm For Extensive Applications


    6 Installation diagam


    Water Treatment Roots Air Blower 450 Rpm To 600 Rpm For Extensive Applications


    7 Chief application


    (1) Water treatment of blast aeration.


    (2) Sewage stirring aeration in hospital and laboratory.


    (3) Vacuum delivery in the printing industry.


    (4) The stirring aeration of electroplating bath and industrial wastewater.


    (5) Spray of burner, glass industry and others.
