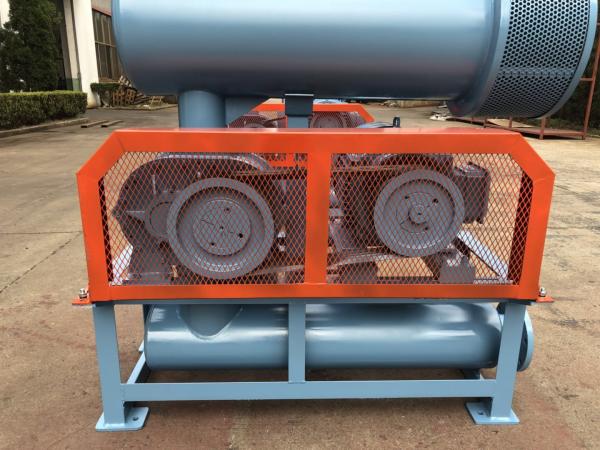

850-1800 RPM High Pressure 3 Lobe Blower For Water Treatment And Food Transportation

1 Company brief

By advanced production & test equipment, technology and management method introduced from abroad, by

advanced management software, B-Tohin Machine ( Jaingsu ) Co.,Ltd. is committed to the production of high

efficient and energy-saving blowers. And it's our sincere wish that we can help you in your success by

supplying high-quality products and reliable service.

2 BC Type Performance Parameters Sheet

3 Structure Drawings

1) Working smoothly as helical timing gears is adopted.

2) It is flexible mounting ways because of the same structure in inlet and outlet.

3) It adopts more reasonable bearing structure, which can increase the bearing operation life.

4) It is low noise, vibration and energy consumption.

4 Standard Accessories

1)Discharge Silencer ( vertical airflow )

2) Flexible Joint

3) AD Type check valve with machined surface sealed

4) Electricity Cabinet can be designed according to the customer's request

5 Optional Accessories

Multi- function YYFZ-L Type Enclosure

Main characteristics

1) Using steel and sponge for sound insulation, and with sound absorbing material embedded in it, and can reduce noise effectively.

2) There four doors, and each side can open throughly, which is convenient for daily maintence.

3) Adopting detachable steucture, which is easy for transport.

4) Compact structure for less floor space.

Remarks: An additional custom anti silencer enclosures, control integrated services.

Outline Dimension Sheet of enclosures

YUSV Type unloaded start valve

1) Being mechanical structure and reasonable design, without conk out.

2) There is no need for bypass and electric executive system.

3) It substitute for the security valve, and protect startup in severe condition.

4) Being easy mounting and maintenance.

FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.

3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.

4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.

B-Tohin Machine (Jiangsu) Co., Ltd. is a foreign invested enterprise established in 1994. It is located at Yixing Industrial Park for Environmental Science & Technology, one of State High-Technology Development Zones. With total registered capital of RMB 120 million and total investment of RMB 160 million B-Tohin is engaged in production and sales of HC blower, BK and YU Roots blowers,air compressor blower,screw blower, anti-corrosion and anti-explosion stainless steel Roots blowers, gear speed-up centrifugal blower, multi-stage centrifugal blowers and in the sales of other supporting products for water treatment in environmental protection, such as water pump (YU, WQ submersible pump, YYOW split case pump), mixer, dewatering machine, etc. By the purchase of a new building of 26000 m2 area in Yixing Economic Development Zone in 2015, the expansion of production scale is supported.

B-Tohin’s products have been widely used in various industries, including water treatment, construction material and cement manufacture, chemical industry, electricity, petroleum, steel, metallurgy, mine, food convey lines, etc., enjoying a good reputation among customers both in the overseas and domestic market.

In the company’s Research and Development Center, a technical innovation team composed of professor level Senior Engineers, Doctors, Masters and many undergraduates, is aiming at the service for environmental protection by tracing and developing the products of high level.

B-Tohin has made great investment in introducing CNC, full-automatic digital control lathes, CMM and other advanced equipment to ensure good quality. A complete set of advanced horizontal OKUMA CNC was introduced specially for the fine finish machining of blower cylinders and end-covers; a NC machine was imported for the processing of blower parts; a Taiwan Dahlih-made CNC was equipped for machining the parts of middle and large size blowers; and several back-forth curve machining planers were introduced for solving the problem of shapers’ precision problem. This kind of planer ranks among the advanced level in China which is specially designed for curve machining of blower rotors. In the beginning of 2015, we cooperated with Testing Laboratory of Shenyang Blower Research Institute (Quality Supervision & Inspection Center for Blowers of China Machinery Industry), and a whole set of blower performance test system was designed for us according to the Roots Blower Industry Standard by the Laboratory.

Passed the certification of ISO9001 & ISO 14001:2400, the company has been nominated as “High & New-tech Enterprises of Jiangsu Province” and “Pneumatic Technology Research Center of Jiangsu Province”. In successive seven years, B-Tohin has been honored as “Favorite Brand of Users in Water Treatment Industry” and “Main Enterprise in Chinese Roots Blower Industry” in 2014, it has been awarded the title of “2014 Top 10 Brands in Chinese Water Industry” on website.

Being a member of National Commission for Pneumatic Conveying and National Technical Committee of Standardization of Blower, and one of the sponsors of National Union of Environmental Protection Equipment Brands, B-Tohin Machine has been an excellent and famous enterprise in environmental protection blower industry.

B-Tohin’s tenet of “Eternal pursuit of improving, eternal promise of satisfying customers” and spirit of “Together with Heat” are always kept in every employee’s mind and in every step of company management. All the honors belong to the past only, people of B-Tohin will make every endeavor to design and manufacture more perfect products for contributing more to the related industries both at home and abroad and to our domestic machinery industry.
