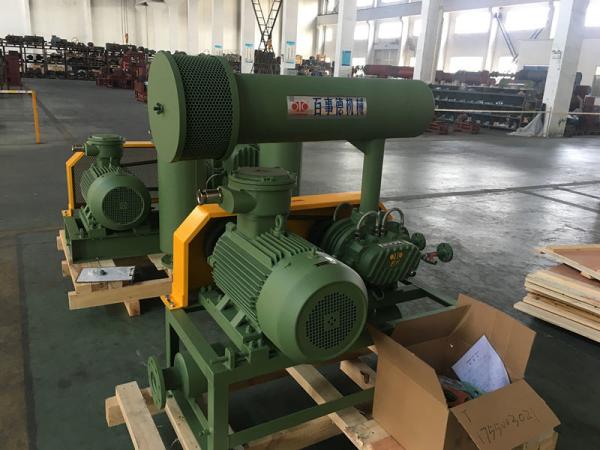

    DN150 Roots Rotary Lobe Blower , high pressure roots pneumatic blower


    DN150 Roots Rotary Lobe Blower, high pressure pneumatic roots blower


    The Roots Rotary Lobe blower BKW of is a product which has been developed by adopting advanced techniques, based on many years' manufacturing experience in the roots type rotary blowers of B-Tohin.



    Specifications

    Model

    BKW7011

    Air capacity

    10.02-28.39m3/min

    Discharge differential pressure

    60-100KPA

    Rotary speed

    700-1500rpm

    Cooling water volume

    10 l/min

    Motor type

    22-75KW
    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type.
    Vertical type available for your option

    N.W. of blower without motor

    520kg

    Packing size Approx.

    1.8*1.2*2m (L*W*H)



    Features

    1. Delivers completely oil-free air.
    2. Low oscillation and low noise by complete balancing.
    3. Small change in capacity against change in pressure.
    4. High efficiency due to special profile.
    5. Simple structure, free from trouble.



    Applications

    1. petrochemical industry

    2. building materials,

    3. electric power, metallurgy

    4. chemical fertilizer

    5. paper making

    6. aquaculture and wastewater treatment, and the environmental protection industry



    Parameter sheet

    ModelSpeedInlet capacity (m3/min)and shaft power (KW)Cooling
    Water
    0.6kgf/cm20.7kgf/cm20.8kgf/cm20.9kgf/cm21.0kgf/cm2
    6000mmH2O7000mmH2O8000mmH2O9000mmH2O10000mmH2O
    0.06Mpa0.07Mpa0.08Mpa0.09Mpa0.1Mpa
    rpmm3/minKWm3/minKWm3/minKWm3/minKWm3/minKWL/min

    BKW7011
    Port Dia:

    DN150

    (6")

    70010.4517.8310.0219.0010
    85013.8121.6513.3923.0713.0126.2812.6529.6412.2932.85
    100017.1825.4716.7527.1416.3730.9216.0134.8715.6538.65
    115020.5429.3020.1131.2119.7335.5619.3740.1019.0244.45
    125022.7831.8422.3633.9221.9838.6521.6243.5821.2648.31
    140026.1535.6625.7237.9925.3443.2924.9848.8124.6254.11
    150028.3938.2127.9640.7027.5846.3827.2252.3026.8657.97


    Structure of blower main body

    DN150 Roots Rotary Lobe Blower , high pressure roots pneumatic blower


    Flow direction of cooling water




    Assembling drawing of blower package




    Standard supply of scope

    1. shaft blower

    2. inlet silencer (with air filter)

    3. outlet silencer

    4. relieve valve

    5. check valve

    6. flexible joint

    7. pressure gauge

    8. blower pulley and motor pulley

    9. V-belt

    10. belt cover
    11. public base

    12. motor
