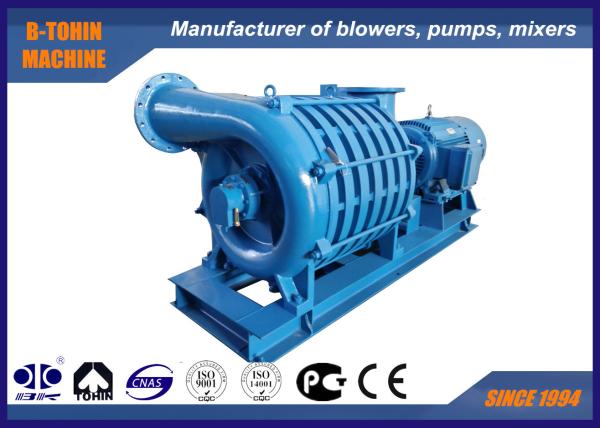

    High Pressure Multistage Centrifugal Blower D150-1.6 for water treatment Aeration

    Ask Lasest Price
    Brand Name : BK
    Model Number : D150-1.6
    Certification : ISO9001/ISO14001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10 SETS per month
    Delivery Time : 20-40 working days, depends on order amount and specification
    • Product Details
    • Company Profile

    High Pressure Multistage Centrifugal Blower D150-1.6 for water treatment Aeration


    Multistage Centrifugal Blower D150-1.6 for water treatment aeration



    About D series multi-stage centrifugal blower

    D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.

    .


    Specifications


    Model No.

    D150-1.6

    Discharge differential pressure

    58.8KPA

    Motor power

    220KW

    Air capacity

    150m3/min

    Motor type

    380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option




    Features

    • Compact structure, elegant appearance, high stability, convenient installation and maintenance

    • Smooth operation

    • Low noise

    • Oil-free Blower

    • Impeller is featured with special composite linear to reduce internal leakage and improve volumetric efficiency.

    • Easy to be adjusted

    • Inlet rings are equipped for impeller of every stage, and labyrinth seals are set between stages and at the two ends of housing for preventing gas leakage.

    • air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.

    • Bearing temperature alarm

    • Blower and motor connected by coupling, other connection methods available according to different technique requirements.


    Structure of blower main body





    Assembling drawing of blower package



    Standard supply of scope


    1. Blower main body

    2. Inlet muffler (with air filter)

    3. Public base for motor and blower(including coupling cover)

    4. Inlet manual butterfly valve

    5. Motor

    6. Pressure gauge

    7. Mounting bolts and connection accessories

    8. Check valve
