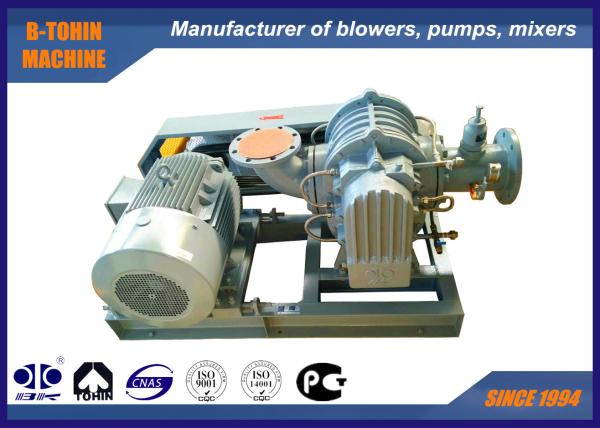

    Roots type Biogas Blower DN150 , Anti - Corrosive Belt driven Blower

    Ask Lasest Price
    Brand Name : BK
    Model Number : YU-EG150
    Certification : ISO9001/ISO14001
    Price : Negotiable
    Supply Ability : 20 SETS per month
    Delivery Time : 15 to 30 working days, depends on order amount and specification
    • Product Details
    • Company Profile

    Roots type Biogas Blower DN150 , Anti - Corrosive Belt driven Blower


    Roots type Biogas Blower DN150, anti-corrosive, explosion-proof


    About YU-EG


    A new type blower designed by our company, impeller and internal surface with special coating, capable of handling particular gases with acids, alkalis, corrosive, inflammable or explosive materials.


    Specifications


    Model

    YU-EG150

    Air capacity

    13.81-29.26m3/min

    Discharge differential pressure

    10-80KPA

    Rotary speed

    850-1400rpm

    Cooling water volume

    70 l/min

    Motor type

    7.5-45KW

    380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    Installation type

    Standard: vertical type

    N.W. of blower without motor

    530kg

    Packing size Approx.

    1.95*1.05*1.4m (length*width*height)

    Features

    1. Suitable for flammable and corrosive gas because of its explosion proof and antisepsis performance

    2. Equipped with multiply seal to prevent leakage

    3. Sprayed with special antisepsis material on cylinder and cover.


    Parameter sheet


    ModelPort
    Dia
    (mm)
    Inlet capacity (m3/min)and shaft power (kW) under various pressureCooling water
    Speed
    rpm
    0.1kgf/cm20.2kgf/cm20.3kgf/cm20.4kgf/cm2
    1000mmH2O2000mmH2O3000mmH2O4000mmH2O
    0.01Mpa0.02Mpa0.03Mpa0.04Mpa
    m3/minKWm3/minKWm3/minKWm3/minKW(l/min)
    YU-EG150150(6")85016.934.5716.038.0115.3410.914.7814.4115
    100020.295.3819.49.4218.712.8318.1416.95
    115023.666.1922.7610.8422.0714.7521.519.5
    125025.96.732511.7824.3116.0323.7521.19
    140029.267.5328.3713.1927.6717.9627.1123.73

    ModelPort
    Dia
    (mm)
    Inlet capacity (m3/min)and shaft power (kW) under various pressureCooling water
    Speed
    rpm
    0.5kgf/cm20.6kgf/cm20.7kgf/cm20.8kgf/cm2
    5000mmH2O6000mmH2O7000mmH2O8000mmH2O
    0.05Mpa0.06Mpa0.07Mpa0.08Mpa
    m3/minKWm3/minKWm3/minKWm3/minKW(l/min)
    YU-EG150150(6")85014.2618.1413.8121.65    15
    100017.6321.3517.1825.4716.7527.14
    115020.9924.5520.5429.320.1131.21
    125023.2326.6822.7831.8422.3633.92
    140026.5929.8826.1535.6625.7237.99

    Structure of blower main body



    Assembling drawing of blower package


    Standard supply of scope


    1. shaft blower

    2. vacuum pressure relieve valve

    3. check valve

    4. inlet silencer(with filter)

    5. discharge silencer

    6. public base (with belt cover)

    7. rubber flexible joint and shock pad

    8. pulley

    9. pressure gauge

    10. belt

    11. bolts and nuts and other connection parts

    12. motor


    FAQ
    1. What's the information should I provide when inquiry?
    A: Air capacity
    B: Pressure
    C: Application
    D: Use environment(Temperature, atmospheric pressure)
    E: Do you need motor?
    Or other specials you give us will be more appreciated.

    2. What is your warranty?
    Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.

    3. How long is the service life of roots blower?
    In normal use environment
    A- Service life of blower is more than 10 years.
    B- Service life of Impeller is more than 60, 000 hours.
    C- Service life of bearing is more than 50, 000 hours.
    D- Service life of gear is more than 60, 000 hours.

    4. What is your terms of packing?
    A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    5. How does your factory control product quality?
    We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

    6. What are your terms of payment?
    1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
    2.100% IRREVOCABLE L/C AT STGHT.
