    Second Stages Roots Air Blower 100KPA - 150KPA for high pressure air convey

    Ask Lasest Price
    Brand Name : BK
    Model Number : BKD-2000
    Certification : ISO9001/ISO14001/CE
    Price : Negotiable
    Supply Ability : 50 SETS per month
    Delivery Time : 15 to 30 working days, depends on order amount and specification
    • Product Details
    • Company Profile

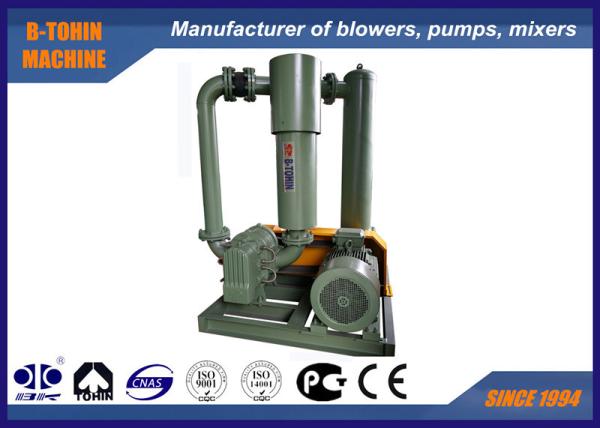

    Second Stages Roots Air Blower 100KPA - 150KPA for high pressure air convey



    Two stages Roots Air Blower 100KPA - 150KPA, for high pressure air convey


    About BKD

    BKD series is a two-stage roots blower composed of two BKW blowers for achieving higher pressure than the single-stage blower’s. Good performance is promised by a middle cooling system between the first and the second stage, which ensures standard temperature of airflow into the second stage blower.


    Specifications

    Model

    BKD-2000

    Air capacity

    5.76-14.04m3/min

    Discharge differential pressure

    100-150KPA

    Rotary speed

    850-1500rpm

    Cooling water volume

    40 l/min

    Motor type

    18.5-45KW
    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Standard: vertical type

    N.W. of blower without motor

    750 kg

    Packing size Approx.

    1.6*1.5*2.2m (length*width*height)

    Features

    1. Water cooling for the bearings at both end-plates lowers the bearing’s operation temperature.
    2. Middle cooler equipped for stable running of blower



    Parameter Sheet

    Art No.Speed
    (rpm)
    Inlet capacity (m3/min)and shaft power (KW)Cooling
    water
    1.0kgf/cm21.2kgf/cm21.4kgf/cm21.5kgf/cm2
    10000mH2O12000mH2O14000mH2O15000mH2O
    0.098Mpa0.118Mpa0.137Mpa0.147Mpa
    ⅠstageⅡstagem3/minkwm3/minkwm3/minkwm3/minkwL/min
    BKD-2000

    Outlet Dia:
    80
    (3")

    Composed of
    BKW6008
    +
    BKW6005
    8508506.4216.436.1118.335.8420.735.7622.0440
    100010008.1719.337.8721.577.6024.397.5225.92
    115011509.9322.229.6324.809.3628.059.2829.81
    1250125011.1124.1610.8026.9610.5330.4910.4532.40
    1400140012.8727.0612.5630.1912.2934.1412.2136.29
    1500150014.0428.9913.7332.3513.4636.5813.3838.89



    Airflow and cooling system

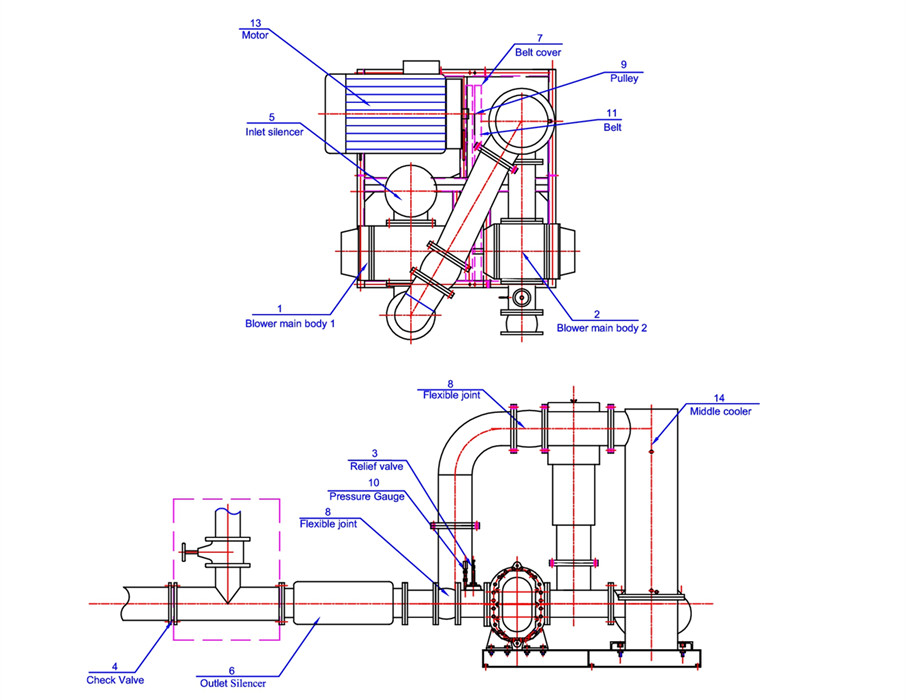

    Assembling drawing of blower package




    Standard supply of scope

    1. blower main body 1
    2. blower main body 2
    3. pressure relieve valve
    4. check valve
    5. inlet silencer(with air filter)
    6. outlet silencer
    7. public base (with belt cover)
    8. rubber flexible joint and shock pad
    9. pulley
    10. pressure gauge
    11. belt
    12. bolts and nuts and other connection parts
    13. motor
    14. middle cooler
