    High Pressure Roots Air Blower two stage DN200 , roots lobe blower

    Ask Lasest Price
    Brand Name : BK
    Model Number : BKD-5000
    Certification : ISO9001/ISO14001/CE
    Price : Negotiable
    Supply Ability : 50 SETS per month
    Delivery Time : 15 to 30 working days, depends on order amount and specification
    • Product Details
    • Company Profile

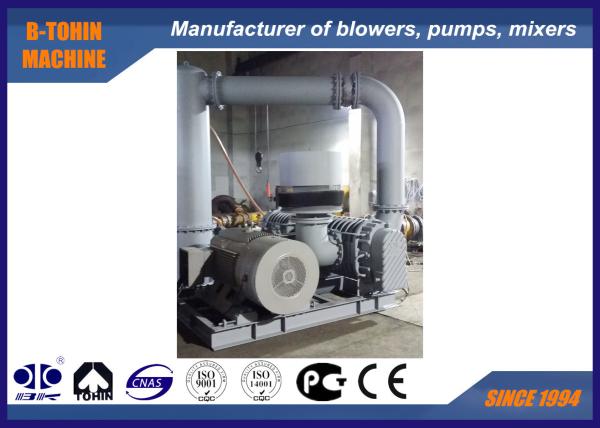

    High Pressure Roots Air Blower two stage DN200 , roots lobe blower


    High Pressure Roots Air Blower, two stage, DN200, roots lobe blower


    About BKD

    BKD series is a two-stage roots blower. It is composed of two BKW blowers for reaching higher pressure. Good performance is promised by a middle cooling system installed between the first and the second stage, which keep standard temperature of airflow into the second stage blower.


    Specifications

    Model

    BKD-5000

    Air capacity

    29.44-61.25m3/min

    Discharge differential pressure

    100-150KPA

    Rotary speed

    850-1400rpm

    Cooling water volume

    90 l/min

    Motor type

    90-185KW
    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Standard: vertical type

    N.W. of blower without motor

    1900kg

    Packing size Approx.

    2.5*2.4*3.2m (length*width*height)

    Features

    1. Water cooling for the bearings at both end-plates lowers the bearing’s operation temperature.
    2. Middle cooler equipped for ease temperature rising



    Parameter Sheet

    Art No.Speed
    (rpm)
    Inlet capacity (m3/min)and shaft power (KW)Cooling
    water
    1.0kgf/cm21.2kgf/cm21.4kgf/cm21.5kgf/cm2
    10000mH2O12000mH2O14000mH2O15000mH2O
    0.098Mpa0.118Mpa0.137Mpa0.147Mpa
    ⅠstageⅡstagem3/minkwm3/minkwm3/minkwm3/minkwL/min
    BKD-5000
    Outlet Dia:
    200
    (8")

    Composed of
    BKW8024
    +
    BKW8016
    85085032.2377.3130.7687.8930.0793.0629.4494.4590
    1000100040.1590.9638.67103.4037.98109.4937.35111.11
    1150115048.06104.6046.58118.9145.90125.9145.26127.78
    1250125053.34113.6951.86129.2551.17136.8650.54138.89
    1400140061.25127.3459.77144.7559.09153.2858.45155.56



    Airflow and cooling system




    Assembling drawing of blower package




    Standard supply of scope

    1. the first stage blower
    2. the second stage blower
    3. pressure relieve valve
    4. check valve
    5. inlet silencer(with air filter)
    6. outlet silencer
    7. public base (with belt cover)
    8. rubber flexible joint and shock pad
    9. pulley
    10. pressure gauge
    11. belt
    12. bolts and nuts and other connection parts
    13. motor
    14. middle cooler
