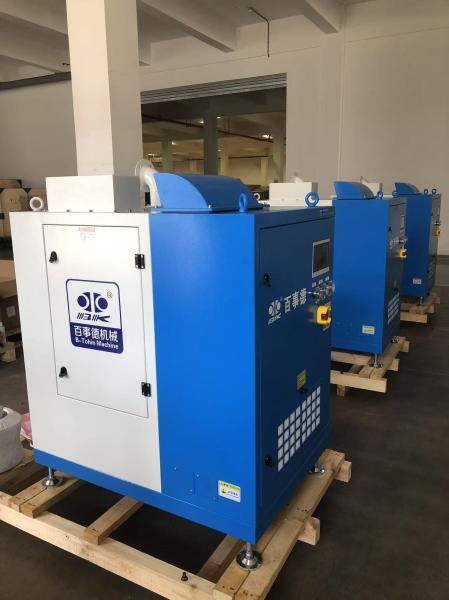

    XTB air bearing centrifugal blower With 37.4m3 / Min~73.8m3 / Min Float

    Ask Lasest Price
    Brand Name : BK
    Model Number : XTB100HP
    Certification : ISO9001/ISO14001
    Payment Terms : L/C, T/T
    Supply Ability : 300 sets / month
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    XTB air bearing centrifugal blower With 37.4m3 / Min~73.8m3 / Min Float

    About the product

    B-TOHIN machine (jiangsu) co., LTD., the foreign capital enterprise, was founded in 1994, the company has passed the pass the quality management system certification and | SO14001 environmental management system certification, and was identified as high-tech enterprises in jiangsu province, China famous trademark, brand-name products in jiangsu province, jiangsu province energy saving air power equipment engineering technology research center, a famous trademark in jiangsu province, environmental protection product certification, and won several national patents and national torch project.I have been awarded the brand title of Chinese water network user satisfaction for many years.

    The main advantage of ATB series air suspension bearing high speed centrifugal blower is that it saves energy.The product of the mouth adopts air suspension bearing, combined with precision casting impeller, super high speed and high efficiency motor,a high efficiency, energy-saving and environment-friendly high speed centrifugal blower made by international famous inverter technology.

    Key Techonogy

    1. Air Foil bearing

    Air foil bearing is lubricated by air buoyancy. The use of air instead of lubricant can realize operation under higher temperature and speed. The advantages of air foil bearing structure include flexible start-up, low-cost operation, no mechanical friction, no need for lubrication oil, no vibration, lower noise and long service life (semi-permanent).



    2.Comparisontable of different bearings

    ItemRoller bearingTilting-pad bearingMagnetic bearingAir foil bearing
    LubricantsNeedNeed--
    Maintenance

    Need replace
    after a period of
    operation

    Need regular
    check/replace

    Need replace
    assistant
    ball bearing

    No Need

    Maintenance
    period

    1 year1 year5 years20 years

    Power cut/
    electrical failure

    Oil pressure drop/
    possible fault

    Oil pressure drop/
    possible fault

    Short life of
    assistant
    ball bearing

    No

    System
    composition

    Complex
    oil system

    Complex
    oil system

    Complex controller,
    limited bearing
    coil life

    Easy
    (complete
    machine type)

    Power loss

    5% loss due to
    gear system

    10% loss due to
    gear system

    (When high speed
    motor equipped)
    1% loss

    (When high speed
    motor equipped)
    Loss < 0.5%

    A/S charges5010010050



    3.High Speed Motor

    Adopt motor of high-efficiency up to 95%, of which the speed can be controlled precisely. The motor is of minimum usable design, fast speed and air cooling type to achieve high efficiency. Air cooling is more reliable than water cooling type, because it provides easier maintenance and promises safer operation.



    4. Inverter & PLC

    InverterPLC


    Inverter

    Adopt the international famous brand SEOHO, YASKAWA ,VACON inverter for your choose. The motor can be started up with a small current so as to cut down the investment on electricity and electric cable. Featured of low noise, high-efficiency, soft-start type and digital control efficiency no less than 96%, the inverter is stable and reliable in operation and can response to rapid load change very fast.


    PLC

    Adopt the programmable logic controller (PLC) of international famous brand, of which the automated solutions standard reaches the world level. The PLC can provide users various solutions from control to final connection to load. Different with MICOM, the PLC needn’t MCP. With single unit or multiple units communication realized by bus wire and center control system, the PLC can lower cost, improve control capability and safety level.


    Advantages of XTB Blower

    (1) Energy-saving, high efficiency
    Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.

    (2) Low noise
    Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.

    (3) No oil, no vibration
    Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.

    (4) Convenient maintenance
    Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance


    5.Model and Data

    ModelPressureAir CapacityDischarge Bore ACooling Way
    mmAq㎥/min
    XTB10HP-0.660007.380Air cooling
    XTB20HP-0.6600014.5150
    XTB30HP-0.6600023.0150
    XTB30HP-0.8800017.7150
    XTB50HP-0.6600035.9150
    XTB50HP-0.8800028.1150
    XTB50HP-1.01000021.8250
    XTB75HP-0.6600051.0200
    XTB75HP-0.8800037.0200
    XTB75HP-1.01000031.0200
    XTB75HP-1.21200028.0200
    XTB100HP-0.6600073.8250
    XTB100HP-0.8800057.2250
    XTB100HP-1.01000046.8250
    XTB100HP-1.21200037.4250
    XTB125HP-0.6600089.4250
    XTB125HP-0.8800072.8250
    XTB125HP-1.01000057.2250
    XTB125HP-1.21200049.9250
    XTB150HP-0.66000104.0250
    XTB150HP-0.8800086.3250
    XTB150HP-1.01000068.3250
    XTB150HP-1.21200060.3250
    XTB200HP-0.66000129300
    XTB200HP-0.88000100.9300
    XTB200HP-1.01000083.2300
    XTB200HP-1.21200070.2300
    XTB250HP-0.66000160350
    XTB250HP-0.88000130350
    XTB250HP-1.010000104350
    XTB250HP-1.21200094350
    XTB300HP-0.66000198350
    XTB300HP-0.88000156350
    XTB300HP-1.010000128350
    XTB300HP-1.212000109350
    XTB350HP-0.66000227350
    XTB350HP-0.88000179350
    XTB350HP-1.010000147350
    XTB350HP-1.212000125350
    XTB400HP-0.66000245400
    XTB400HP-0.88000189400
    XTB400HP-1.010000158400
    XTB400HP-1.212000149400
    XTB500HP-0.66000316500
    XTB500HP-0.88000256500
    XTB500HP-1.010000205500
    XTB500HP-1.212000177500
    XTB600HP-0.66000390500
    XTB600HP-0.88000307500
    XTB600HP-1.010000252500
    XTB600HP-1.212000207500
    XTB700HP-0.66000448500
    XTB700HP-0.88000353500
    XTB700HP-1.010000290500
    XTB700HP-1.212000239500



    Comparison with Roots Blower

    ItemTraditional Roots BlowerXTB150HP-0.6
    Discharge pressure0.6 bar0.6 bar
    Air capacity70 m³/min70 m³/min
    Shaft power112.5 KW72.5 KW
    Compression efficiency50%75%
    Noise(@ 1.5m)95~110 dB80 dB
    Lubrication oilNeedNo need
    Service life7 yearsSemi permanent
    Annual depreciation100.0%53.3%
    Annual energy consumption100.0%50.0%
    Annual maintenance cost100.0%8.3%
    Annual total cost100.0%57.7%



    6. Summing up

    Air suspension centrifugal fan with traditional roots blower, multistage centrifugal blower is different, use air bearing, direct technology, high efficiency impeller and ultra-high speed motor, to breakthrough the economic benefits of the higher energy saving effect.In order to help the ecological environment and stable technology, provide a good comfortable working environment, can expect multiple effects.
