    Cast Iron High Capacity 3600m3 / Hour Roots Rotary Lobe Blower

    Ask Lasest Price
    Brand Name : BK
    Model Number : BKW8024
    Certification : ISO9001/ISO14001/CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 SETS per month
    Delivery Time : 5 to 20 working days, depends on order amount and specification
    • Product Details
    • Company Profile

    Cast Iron High Capacity 3600m3 / Hour Roots Rotary Lobe Blower


    Cast Iron Roots Rotary Lobe Blower, capacity 3600m3/hour roots lobe blower

    Roots blower is a kind of volumetric blower whose air capacity and revolution have formed a proportion. Each rotation of the three-lobe type blower needs three times of air suction& discharge of two-lobes. Compared to two-lobe type blower, three lobe roots blower have the characteristics of low air pulsation and more stable operation.

    It has two lobes on the two parallel bearings. There are small tiny spaces between lobes, elliptic casing as well as each lobe. he lobes' uniform speed rotation at opposite directions makes the certain quantity air circled by casing and lobes transported form the suction side to the discharge side.


    Specifications

    Model

    BKW8024

    Air capacity

    22.74-66.05m3/min

    Discharge differential pressure

    60-80KPA

    Rotary speed

    700-1500rpm

    Cooling water volume

    20 l/min

    Motor type

    45-132KW
    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type.
    Vertical type available for your option

    N.W. of blower without motor

    1160kg

    Packing size Approx.

    2.28*1.51*2.45m (L*W*H)



    Features
    1. Rotor curves improved for energy saving 15 to 25%
    2.BKW roots blower has good sealing performance by using fluoro rubber sealing material.
    3. Gear accuracy is the fifth class, and the main parts are NC machined for ensuring smooth running.
    4.Low vibration due to accurate dynamic balance.
    5.The transported air is clean and free of oil or dust.


    Parameter sheet

    ModelSpeedInlet capacity (m3/min)and shaft power (KW)Cooling
    Water
    0.6kgf/cm20.7kgf/cm20.8kgf/cm2
    6000mmH2O7000mmH2O8000mmH2O
    0.06Mpa0.07Mpa0.08Mpa
    rpmm3/minKWm3/minKWm3/minKWL/min

    BKW8024
    Port Dia:

    DN250(10")

    70023.8539.1022.7447.5120
    85031.7647.4830.6555.06
    100039.6755.8638.5664.7837.6773.70
    115047.5964.2446.4874.5045.5884.76
    125052.8669.8251.7580.9850.8692.13
    140060.7778.2059.6790.6958.77103.19
    150066.0583.7864.9497.1764.05110.56


    Structure of blower main body

    Cast Iron High Capacity 3600m3 / Hour Roots Rotary Lobe Blower


    Flow direction of cooling water

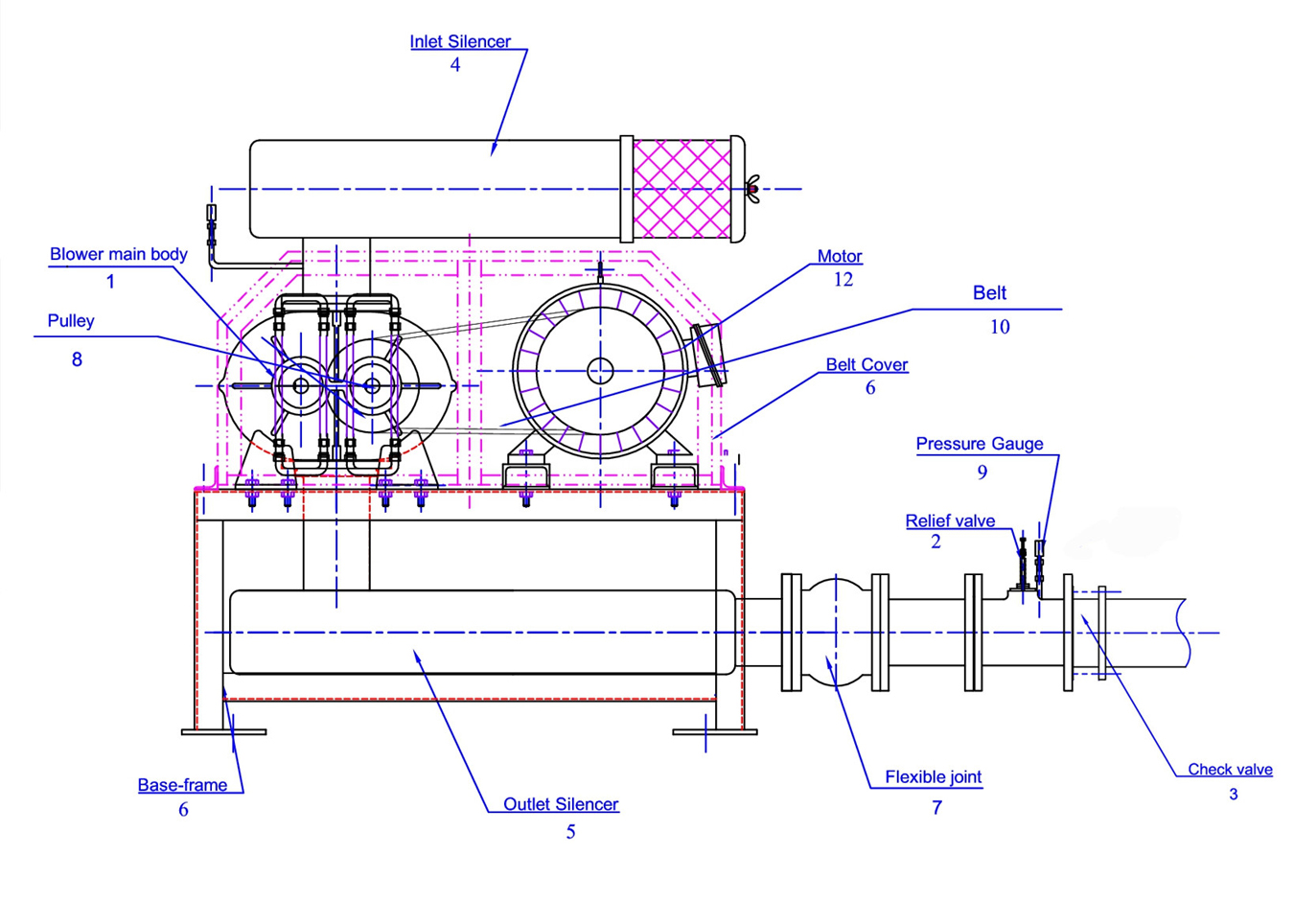

    Assembling drawing of blower package



    Standard supply of scope

    1. shaft blower
    2. inlet silencer (with air filter)
    3. outlet silencer


    4. relieve valve

    It is a safety device on the system. When the system works abnormally and the resistance is higher than the rated value, the pressure relief valve opens to discharge the air from the pressure relief valve to prevent the blower and motor from being overload.


    5. check valve

    It is used to prevent back-flow of high-pressure air in the system during shutdown. The back-flow can cause blower reversion and then cause blower malfunctions. The valve body is made of cast iron.


    6. flexible joint
    7. pressure gage
    8. blower pulley and motor pulley
    9. V-belt
    10. belt cover
    11. public base
    12. motor
