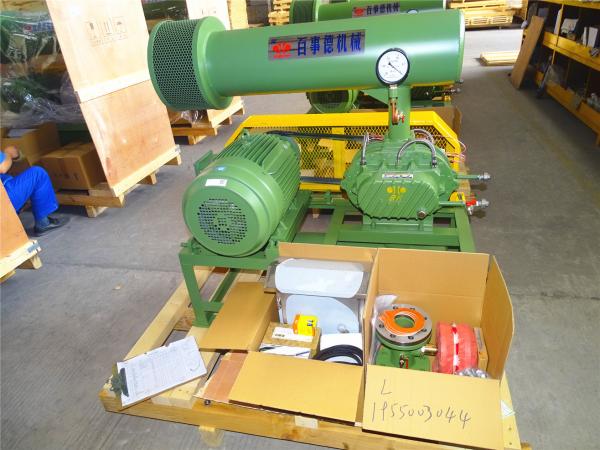

    Positive Displacement Fertilizer Steel Roots Rotary Lobe Blower

    Ask Lasest Price
    Brand Name : BK
    Model Number : BKW5003
    Certification : ISO9001/ISO14001/CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 SETS per month
    Delivery Time : 10 to 20 working days, depends on order amount and specification
    • Product Details
    • Company Profile

    Positive Displacement Fertilizer Steel Roots Rotary Lobe Blower


    Air Roots Rotary Lobe Blower, DN65, maxiumum pressure 100KPA, aeration blower



    About BKW

    BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which
    can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher
    pressure application.


    Specifications

    Model

    BKW5003

    Air capacity

    2.31-6.21m3/min

    Discharge differential pressure

    60-100KPA

    Rotary speed

    1000-2000rpm

    Cooling water volume

    4 l/min

    Motor type

    5.5-18.5KW
    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type.
    Vertical type available for your option

    N.W. of blower without motor

    181kg

    Packing size Approx.

    Packing case for blower: 1.3*0.95*0.75m (L*W*H)

    Packing case for blower accessories: 1.21*0.53*0.47m (L*W*H)



    Features

    1. Improved type of BK series for achieving higher pressure

    2. High temperature rising occurs under high pressure operation, water cooling system will solve the problem and protect bearings.



    Parameter sheet

    ModelPort Dia (MM)SpeedInlet airflow (m3/min)and shaft power(KW)(m3/min)
    0.6kgf/cm20.7kgf/cm20.8kgf/cm20.9kgf/cm21.0kgf/cm2Cooling
    Water
    6000mmH2O7000mmH2O8000mmH2O9000mmH2O10000mmH2O
    0.06Mpa0.07Mpa0.08Mpa0.09Mpa0.1Mpa
    rpmm3/minKWm3/minKWm3/minKWm3/minKWm3/minKWL/min
    BKW500365 (2.5")10002.314.592.185.45      4
    11502.895.282.766.272.657.072.537.87
    12503.285.743.156.813.047.682.928.55
    13503.676.193.547.363.438.303.319.24
    15004.266.884.138.174.019.223.9010.263.7911.30
    16004.657.344.528.724.409.834.2910.954.1812.06
    17505.238.035.109.544.9910.754.8711.974.7713.19
    18505.628.495.5010.085.3811.375.2712.665.1613.94
    20006.219.186.0810.905.9612.295.8513.685.7515.07


    Structure of blower main body

    Positive Displacement Fertilizer Steel Roots Rotary Lobe Blower


    Flow direction of cooling water




    Assembling drawing of blower package




    Standard supply of scope

    1. shaft blower

    2. inlet silencer (with air filter)

    3. outlet silencer

    4. relieve valve

    5. check valve

    6. flexible joint

    7. pressure gauge

    8. pulley

    9. V-belt

    10. belt cover
    11. blower base

    12. electric motor


    For more commercial and techinial details, please feel free to to contact us.
