    Vacuum 10KPA To 70KPA DN65 2.5” Rotary Lobe Blower

    Ask Lasest Price
    Brand Name : BK
    Model Number : BV65
    Certification : ISO9001/ISO14001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 80 SETS per month
    Delivery Time : 5 to 20 working days, depends on order amount and specification
    • Product Details
    • Company Profile

    Vacuum 10KPA To 70KPA DN65 2.5” Rotary Lobe Blower


    Vacuum 10KPA to vacuum 70KPA Roots negative pressure blower vacuum Pump DN65 lobe rotary type blower


    About BV65H Vacuum Blower


    BK65H vacuum blower is a kind of displacement Roots type air pump. It can reach -70KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.



    Specifications

    Model

    BV65H

    Air capacity

    2.07-4.06m3/min

    Discharge differential pressure

    -10 ~ -70KPA

    Rotary speed

    1500-2200rpm

    Motor type

    5.5-11KW

    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    Installation type

    Standard: vertical type

    N.W. of blower without motor

    176kg

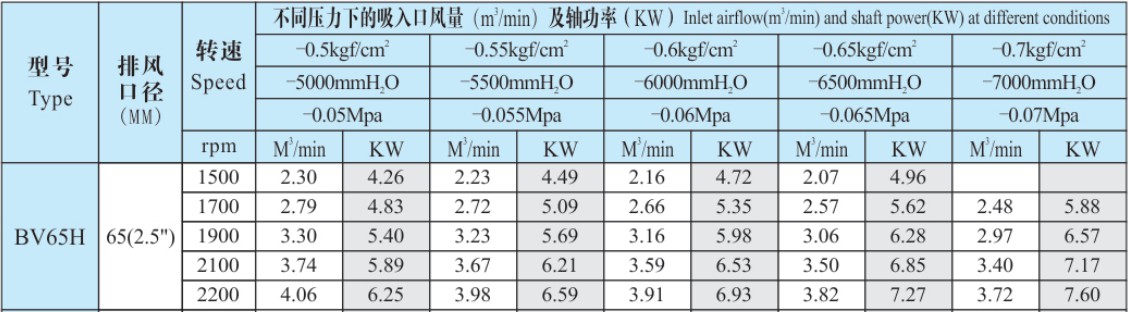

    Parameter sheet

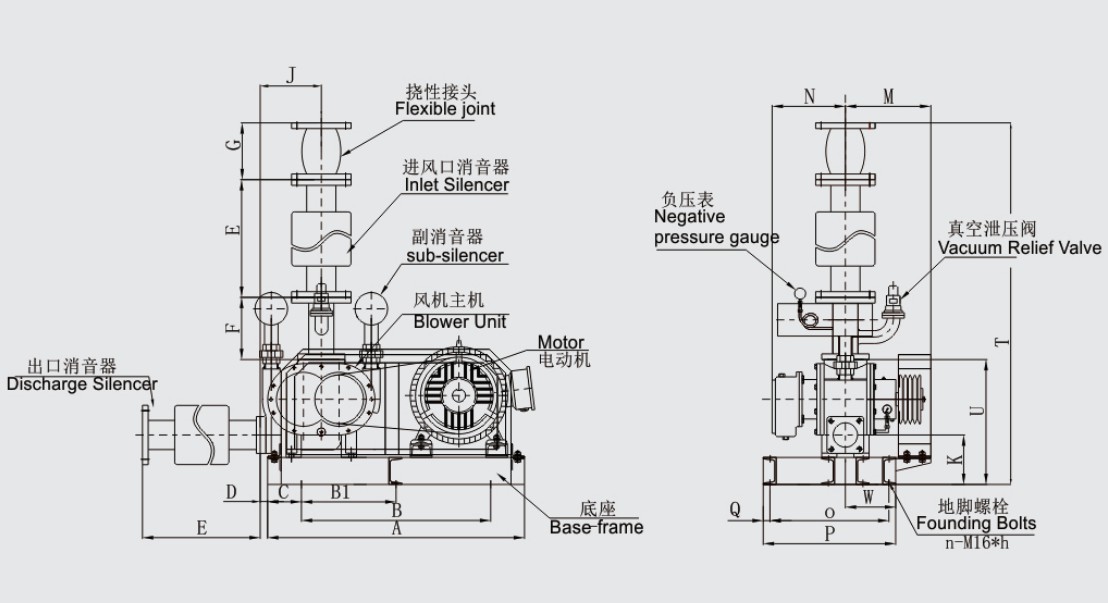

    Assembling drawing of blower package


    Dimension size


    Standard supply of scope

    1. blower main body

    2. vacuum safety valve

    3. inlet silencer

    4. outlet silencer

    5. public base (with belt cover)

    6. rubber flexible joint and shock pad

    7. blower pulley

    8. pressure gauge

    9. belt

    10. bolts and nuts and other connection parts

    11. motor
