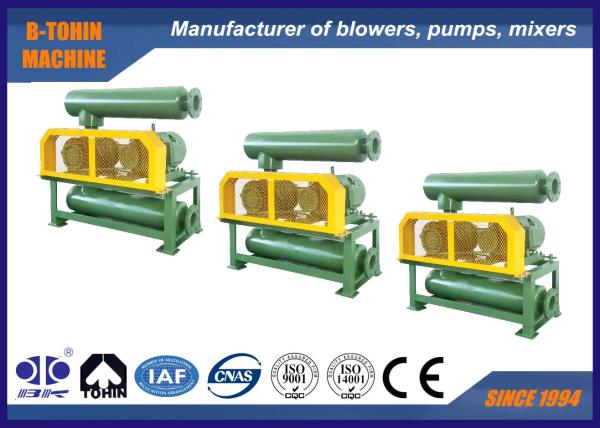

    -50KPA 4.53m3/Min 7.5KW Roots Blower Vacuum Pump

    Ask Lasest Price
    Brand Name : BK
    Model Number : BV65
    Certification : ISO9001/ISO14001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 80 SETS per month
    Delivery Time : 5 to 20 working days, depends on order amount and specification
    • Product Details
    • Company Profile

    -50KPA 4.53m3/Min 7.5KW Roots Blower Vacuum Pump


    Vacuum 10KPA to vacuum 70KPA Roots negative pressure blower vacuum Pump DN65 lobe rotary type blower


    About BV5003 Vacuum Blower


    BK5003 vacuum blower is a kind of displacement Roots type air pump. It can reach -50KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.



    Specifications

    Model

    BV5003

    Air capacity

    1.92-7.38m3/min

    Discharge differential pressure

    -10 ~ -50KPA

    Rotary speed

    850-2000rpm

    Motor type

    1.5-11KW

    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type, vertical type can be made to order

    N.W. of blower without motor

    171kg



    Parameter sheet


    Assembling drawing of blower package


    Dimension size


    Standard supply of scope

    1. blower main body

    2. vacuum safety valve

    3. inlet silencer

    4. outlet silencer

    5. public base (with belt cover)

    6. rubber flexible joint and shock pad

    7. blower pulley

    8. pressure gauge

    9. belt

    10. bolts and nuts and other connection parts

    11. motor
