Brand Name : | BK |
Model Number : | XTB75HP |
Certification : | ISO9001/ISO14001 |
Payment Terms : | L/C, T/T |
Supply Ability : | 300 sets / month |
Delivery Time : | 25 working days according to your specifications |
1,Machine Brief:

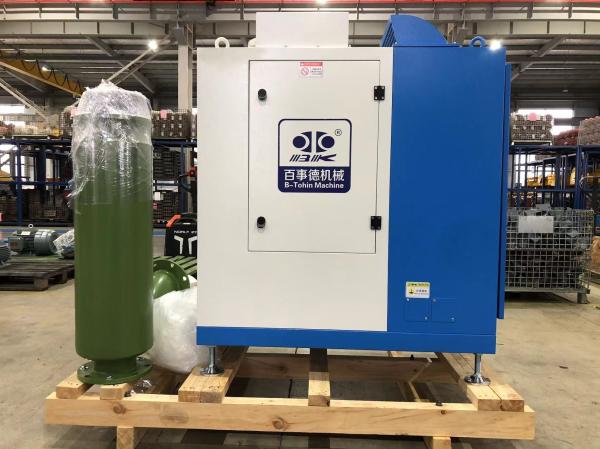

XTB Air Suspension Bearing Centrifugal Blower is an efficient fluid
machinery that combines advanced suspension technology and
centrifugal Blower principles, widely used in multiple industrial
fields.
2,Main Characteries:
1,Air suspension bearing is lubricated by air buoyancy.The usage of
air instead of lubricant can realize operation under higher
temperature and speed.The advantages of air foil bearing structure
include flexible start-up,low -cost operation,no mechanical
friction, no need for lubrication oil,no vibration,lower noise and
long service life(semi-permanent).
2,Impeller:The impeller is made of AL7075 and is precisely
manufactured by advanced 3D optimal design technology. It is
featured of high strength,high aerodynamic efficiency and low
wear.Directly connected with the shaft,its power transmission
efficiency is 99%.
3,High speed motor:Adopt motor of high-efficiency up to
95%,applicable for precise speed control.
3,Product Structure and Components:
The high-speed direct connected motor controls its speed by
changing the frequency of the frequency converter.
The PLC control -unit allows users to manually/automatically adjust
it in real time according to the site conditions.
The chassis fixes all components and blocks the noise inside the
blower.
Touch screen LCD | Variable frequency drive | Cooling air muffler |
1,Input driving signal 2,View operational data 3,Change product settings | 1,Change the motor speed according to the PLC value | 1,Saving installation space 2,Two air cooling circulation systems |
Vent valve | Air | Internal Muffler |
1,Empty the air to protect the motor when starting and stopping the
blower | 1,Compress the surrounding air and gas | 1,Reduce the noise transmitted to the outside through the motor of
the entrance path |
4,Machine Advantages:
①Simple Maintenance
②Compact Structure
③Low noise,no vibration,long service life
④Convenient usage and control
⑤Oil free,no vibration,air bearing
⑥High efficiency,saving energy

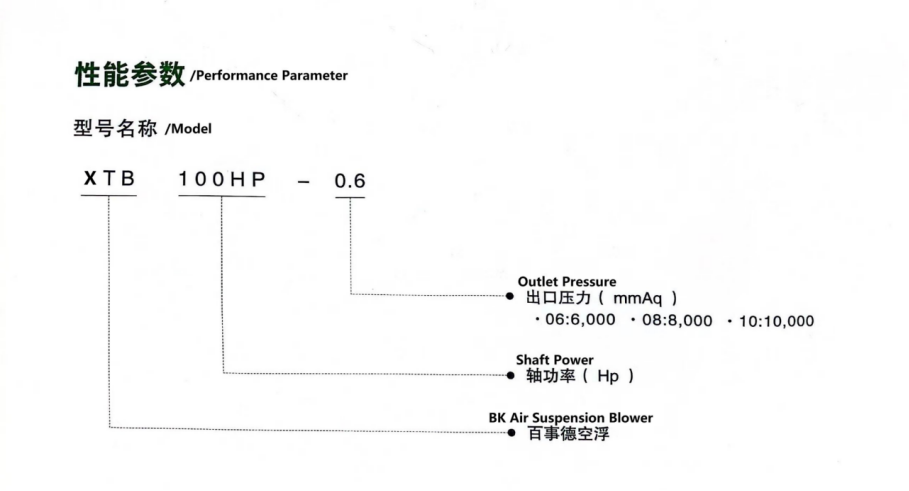

5.Model Specifications:
Model | 10 | 20 | 30 | 50 | 75 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | |
Flow rate (mm Aq) | 6000 | 7.3 | 14.5 | 23.0 | 35.9 | 51.0 | 73.8 | 89.4 | 104.0 | 129.0 | 160 | 198 | 227 | 245 | 316 | 390 | 448 |
8000 | 11.1 | 17.7 | 28.1 | 37.0 | 57.2 | 72.8 | 86.3 | 100.9 | 130 | 156 | 179 | 189 | 256 | 307 | 353 | ||
10000 | 21.8 | 31.0 | 46.8 | 57.2 | 68.6 | 83.2 | 104 | 128 | 147 | 158 | 205 | 252 | 290 | ||||
12000 | 28.0 | 37.4 | 49.9 | 60.3 | 70.2 | 94 | 109 | 125 | 149 | 177 | 207 | 239 | |||||
Discharge(DN) | 80 | 150 | 150 | 150 | 200 | 250 | 250 | 250 | 300 | 350 | 350 | 350 | 400 | 500 | 500 | 500 |
Weight(kg) | 200 | 395 | 400 | 415 | 700 | 780 | 860 | 870 | 920 | 1400 | 1480 | 1500 | 2200 | 3700 | 3860 | 3900 | |
SIZE (mm) | W | 650 | 800 | 800 | 800 | 1020 | 1020 | 1020 | 1020 | 1020 | 1300 | 1300 | 1300 | 1700 | 1800 | 1800 | 1800 |
D | 650 | 1150 | 1150 | 1150 | 1600 | 1600 | 1700 | 1700 | 1700 | 2000 | 2000 | 2000 | 2500 | 3500 | 3500 | 3500 | |
H | 1020 | 1350 | 1350 | 1350 | 1580 | 1580 | 1780 | 1780 | 1780 | 1900 | 1900 | 1900 | 2040 | 2200 | 2200 | 2200 |
