Brand Name : | BK |
Model Number : | XTB10HP |
Certification : | ISO9001/ISO14001 |
Payment Terms : | L/C, T/T |
Supply Ability : | 300 sets / month |
Delivery Time : | 25 work days |
About the product
B-TOHIN machine (jiangsu) co., LTD., the foreign capital
enterprise, was founded in 1994, the company has passed the pass
the quality management system certification and | SO14001
environmental management system certification, and was identified
as high-tech enterprises in jiangsu province, China famous
trademark, brand-name products in jiangsu province, jiangsu
province energy saving air power equipment engineering technology
research center, a famous trademark in jiangsu province,
environmental protection product certification, and won several
national patents and national torch project.I have been awarded the
brand title of Chinese water network user satisfaction for many
years.
The main advantage of ATB series air suspension bearing high speed
centrifugal blower is that it saves energy.The product of the mouth
adopts air suspension bearing, combined with precision casting
impeller, super high speed and high efficiency motor,a high
efficiency, energy-saving and environment-friendly high speed
centrifugal blower made by international famous inverter
technology.

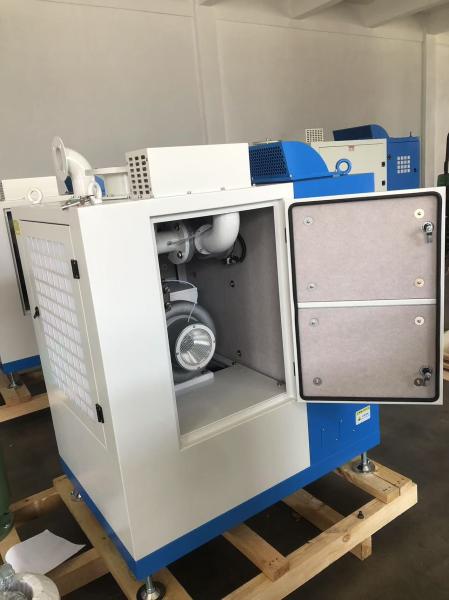

The high-speed direct connected motor controls its speed by changing the frequency of the frequency converter. The PLC control -unit allows users to manually/automatically adjust it in real time according to the site conditions. The chassis fixes all components and blocks the noise inside the blower.
Touch screen LCD | Variable frequency drive | Cooling air muffler |
1,Input driving signal 2,View operational data 3,Change product settings | 1,Change the motor speed according to the PLC value 2,Change flow and pressure | 1,Saving installation space 2,Two air cooling circulation systems |
Vent valve | Air | Internal Muffler |
1,Empty the air to protect the motor when starting and stopping the blower 2,Pneumatic systems utilize compressed air by itself | 1,Compress the surrounding air and gas 2,Centrifugal compression by using impellers and volutes 3,Oil free due to the use of air bearings 4,Air cooling or water cooling 5,High efficiency motor | 1,Reduce the noise transmitted to the outside through the motor of the entrance path 2,C-shaped shape |

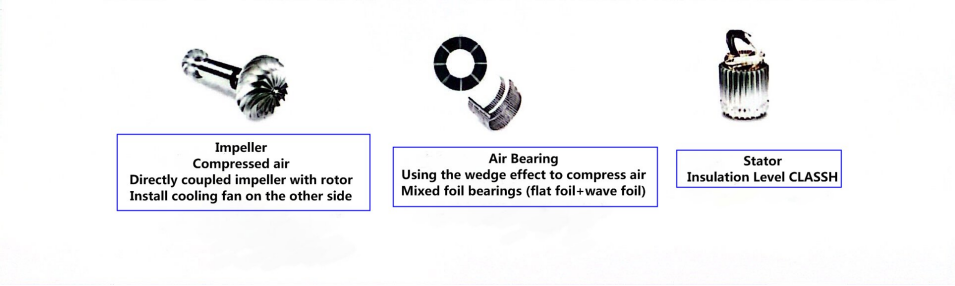

Key Techonogy
1. Air Foil bearing
Air foil bearing is lubricated by air buoyancy. The use of air
instead of lubricant can realize operation under higher temperature
and speed. The advantages of air foil bearing structure include
flexible start-up, low-cost operation, no mechanical friction, no
need for lubrication oil, no vibration, lower noise and long
service life (semi-permanent).
2.Comparisontable of different bearings
Item | Roller bearing | Tilting-pad bearing | Magnetic bearing | Air foil bearing |
Lubricants | Need | Need | - | - |
Maintenance | Need replace | Need regular | Need replace | No Need |
Maintenance | 1 year | 1 year | 5 years | 20 years |
Power cut/ | Oil pressure drop/ | Oil pressure drop/ | Short life of | No |
System | Complex | Complex | Complex controller, | Easy |
Power loss | 5% loss due to | 10% loss due to | (When high speed | (When high speed |
A/S charges | 50 | 100 | 100 | 50 |
3.High Speed Motor
Adopt motor of high-efficiency up to 95%, of which the speed can be
controlled precisely. The motor is of minimum usable design, fast
speed and air cooling type to achieve high efficiency. Air cooling
is more reliable than water cooling type, because it provides
easier maintenance and promises safer operation.
4. Inverter & PLC
Inverter | PLC |
![]() | ![]() |
Inverter
Adopt the international famous brand SEOHO, YASKAWA ,VACON inverter
for your choose. The motor can be started up with a small current
so as to cut down the investment on electricity and electric cable.
Featured of low noise, high-efficiency, soft-start type and digital
control efficiency no less than 96%, the inverter is stable and
reliable in operation and can response to rapid load change very
fast.
PLC
Adopt the programmable logic controller (PLC) of international
famous brand, of which the automated solutions standard reaches the
world level. The PLC can provide users various solutions from
control to final connection to load. Different with MICOM, the PLC
needn’t MCP. With single unit or multiple units communication
realized by bus wire and center control system, the PLC can lower
cost, improve control capability and safety level.
Advantages of XTB Blower
(1) Energy-saving, high efficiency
Air bearing turbo centrifugal blower adopts air foil bearings,
direct-connection technology, high efficiency impeller and motor.
No additional friction will occur, and motor power consumption is
automatically adjusted according to the output airflow capacity
(adjustable range 20-100%), so the energy-saving effect is
remarkable.
(2) Low noise
Adopt air bearing and direct-connection way without mechanical
contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to
install acoustic enclosure.
(3) No oil, no vibration
Air quality reaches ISO 8573-1 0 grade without vibration, so
anti-vibration work is not required.
(4) Convenient maintenance
Without gearbox and oil-lubricated bearing of traditional blowers,
high and new technology is introduced for convenient maintenance
5.Model and Data
Model | Pressure | Air Capacity | Discharge Bore A | Cooling Way |
mmAq | ㎥/min | |||
XTB10HP-0.6 | 6000 | 7.3 | 80 | Air cooling |
XTB20HP-0.6 | 6000 | 14.5 | 150 | |
XTB30HP-0.6 | 6000 | 23.0 | 150 | |
XTB30HP-0.8 | 8000 | 17.7 | 150 | |
XTB50HP-0.6 | 6000 | 35.9 | 150 | |
XTB50HP-0.8 | 8000 | 28.1 | 150 | |
XTB50HP-1.0 | 10000 | 21.8 | 250 | |
XTB75HP-0.6 | 6000 | 51.0 | 200 | |
XTB75HP-0.8 | 8000 | 37.0 | 200 | |
XTB75HP-1.0 | 10000 | 31.0 | 200 | |
XTB75HP-1.2 | 12000 | 28.0 | 200 | |
XTB100HP-0.6 | 6000 | 73.8 | 250 | |
XTB100HP-0.8 | 8000 | 57.2 | 250 | |
XTB100HP-1.0 | 10000 | 46.8 | 250 | |
XTB100HP-1.2 | 12000 | 37.4 | 250 | |
XTB125HP-0.6 | 6000 | 89.4 | 250 | |
XTB125HP-0.8 | 8000 | 72.8 | 250 | |
XTB125HP-1.0 | 10000 | 57.2 | 250 | |
XTB125HP-1.2 | 12000 | 49.9 | 250 | |
XTB150HP-0.6 | 6000 | 104.0 | 250 | |
XTB150HP-0.8 | 8000 | 86.3 | 250 | |
XTB150HP-1.0 | 10000 | 68.3 | 250 | |
XTB150HP-1.2 | 12000 | 60.3 | 250 | |
XTB200HP-0.6 | 6000 | 129 | 300 | |
XTB200HP-0.8 | 8000 | 100.9 | 300 | |
XTB200HP-1.0 | 10000 | 83.2 | 300 | |
XTB200HP-1.2 | 12000 | 70.2 | 300 | |
XTB250HP-0.6 | 6000 | 160 | 350 | |
XTB250HP-0.8 | 8000 | 130 | 350 | |
XTB250HP-1.0 | 10000 | 104 | 350 | |
XTB250HP-1.2 | 12000 | 94 | 350 | |
XTB300HP-0.6 | 6000 | 198 | 350 | |
XTB300HP-0.8 | 8000 | 156 | 350 | |
XTB300HP-1.0 | 10000 | 128 | 350 | |
XTB300HP-1.2 | 12000 | 109 | 350 | |
XTB350HP-0.6 | 6000 | 227 | 350 | |
XTB350HP-0.8 | 8000 | 179 | 350 | |
XTB350HP-1.0 | 10000 | 147 | 350 | |
XTB350HP-1.2 | 12000 | 125 | 350 | |
XTB400HP-0.6 | 6000 | 245 | 400 | |
XTB400HP-0.8 | 8000 | 189 | 400 | |
XTB400HP-1.0 | 10000 | 158 | 400 | |
XTB400HP-1.2 | 12000 | 149 | 400 | |
XTB500HP-0.6 | 6000 | 316 | 500 | |
XTB500HP-0.8 | 8000 | 256 | 500 | |
XTB500HP-1.0 | 10000 | 205 | 500 | |
XTB500HP-1.2 | 12000 | 177 | 500 | |
XTB600HP-0.6 | 6000 | 390 | 500 | |
XTB600HP-0.8 | 8000 | 307 | 500 | |
XTB600HP-1.0 | 10000 | 252 | 500 | |
XTB600HP-1.2 | 12000 | 207 | 500 | |
XTB700HP-0.6 | 6000 | 448 | 500 | |
XTB700HP-0.8 | 8000 | 353 | 500 | |
XTB700HP-1.0 | 10000 | 290 | 500 | |
XTB700HP-1.2 | 12000 | 239 | 500 |
